Description

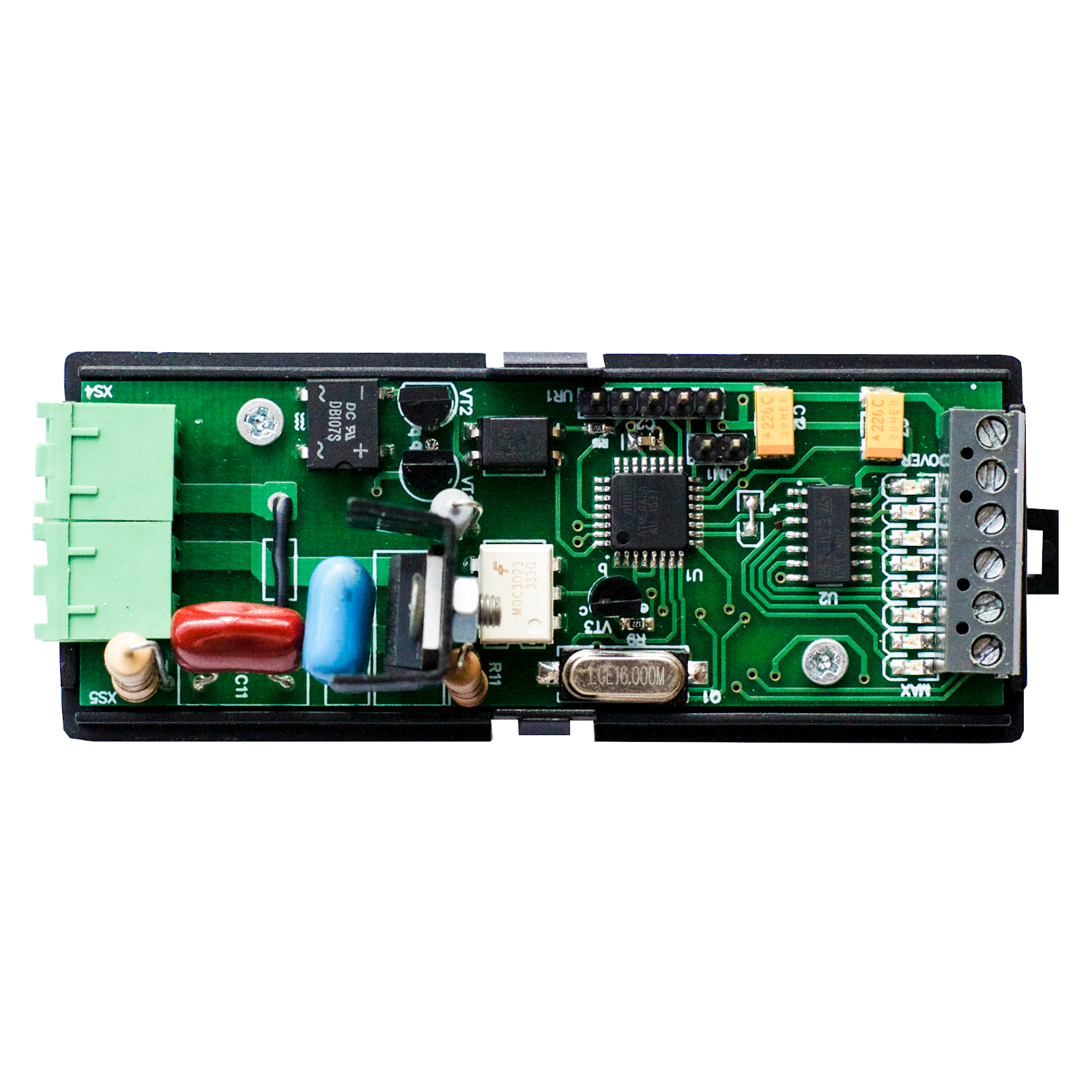

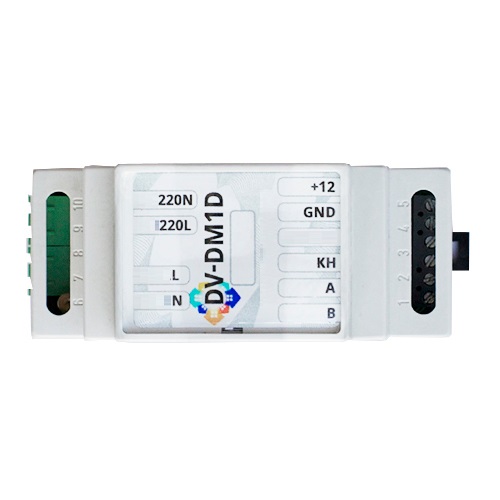

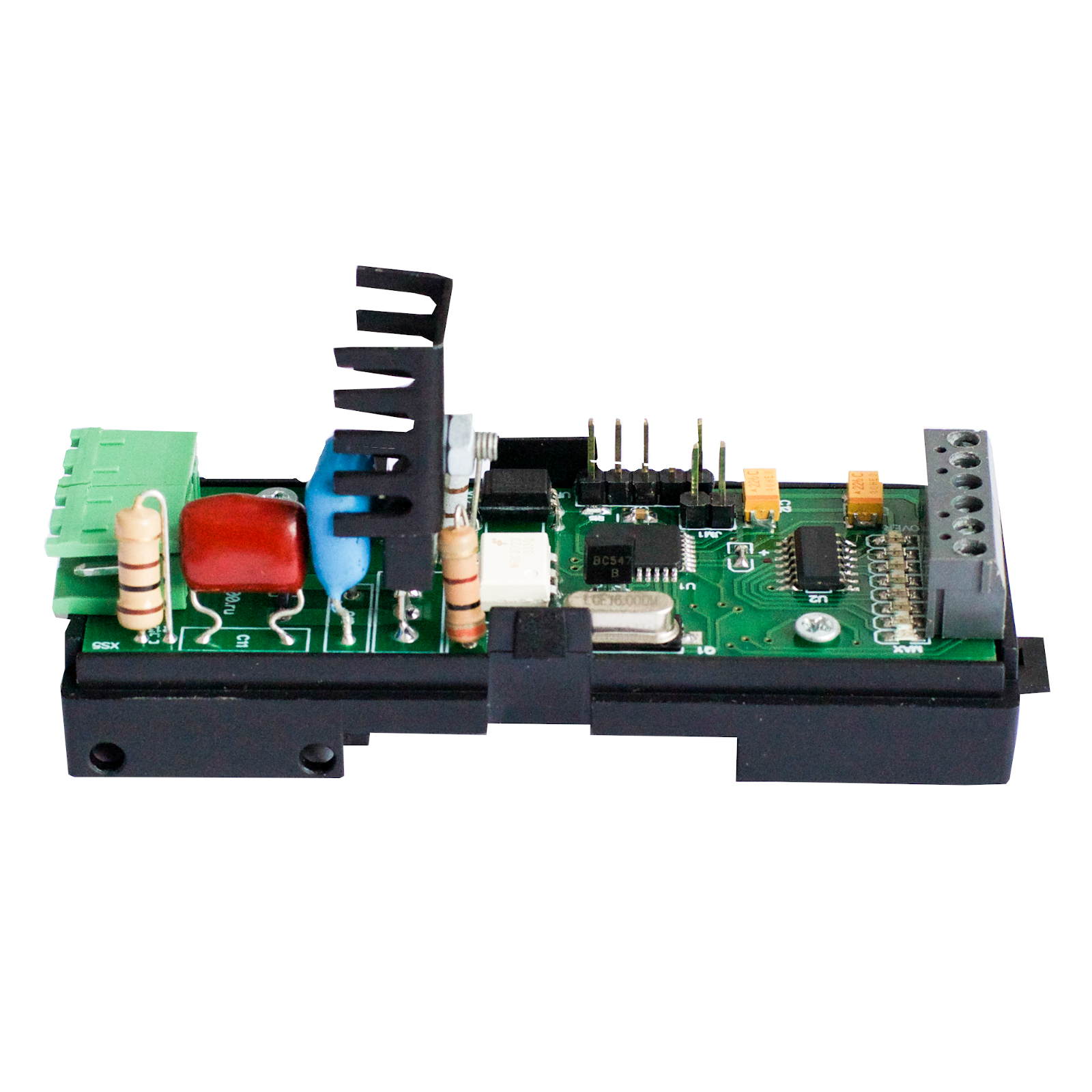

The DV-DM1D dimmer is an addressable electronic controller used as part of the DIVISION automation system for smooth brightness control of incandescent lamps. Structurally, the controller is made in a housing for mounting on a DIN rail. Connects to the DV-HEAD OMEGA, GALAXY, PRO central controller via the RS485 interface. The maximum total power of the lamps included in one channel should not exceed 200 W.
The channel brightness control is controlled from the central DV-HEAD OMEGA, GALAXY, PRO controller via RS485, as well as from a local button without fixation connected to the low-current input of the dimmer. Alternately pressing the button causes the DV-DM1D channel to turn on and off smoothly, holding the button allows you to adjust the brightness of the lighting group connected to the DV-DM1D dimmer. The DV-DM1D dimmer can work offline.
To test and assign an address to the DV-DM1D controller in the DIVISION system, connect it to a personal computer using a USB/RS485 interface converter and run the DIVISION CONTROLLERS program.
You can download the dimmer control protocol from the link
Main technical characteristics:
– 1 channel;
– 200 W;
– 220 V ±10%;
– regulation of the level of illumination from 0 to 100%;
– RS485;
– auto-detection in the DIVISION automation system;
– indication of the operating mode on the board;
– Software for testing DIVISION CONTROLLERS;
– 2-DIN dimensions.
Typical schemes for switching on the controller are given in the Operation Manual and in the Constructor section
