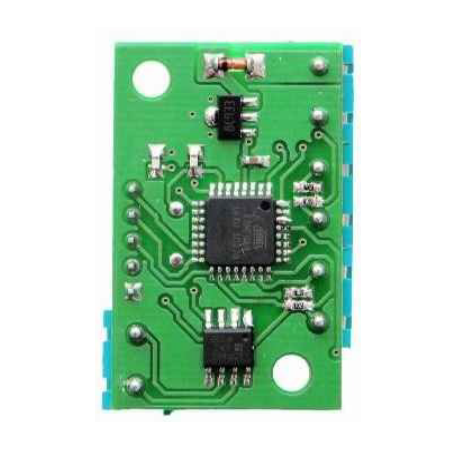

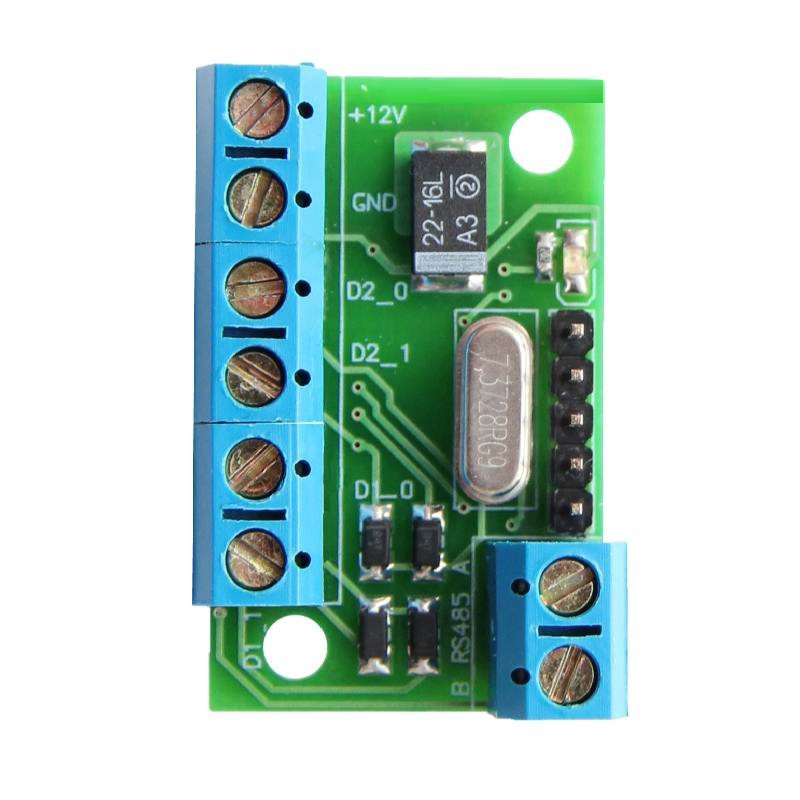

DV-PROXI 1 is an electronic address controller for card readers with a WIGAND 26 interface in the DIVISION automation system. The DV-PROXI 1 controller is designed to build access to control and management systems (ACS). Connects to the DV-HEAD OMEGA central controller via RS485 interface. Structurally, DV – PROXI 1 is made in the form of a printed circuit board with the possibility of installation in a case. DV-PROXI 1 works only as a part of the DIVISION automation system.
To test and assign an address to the DV-PROXI 1 controller in the DIVISION automation system, connect it to a personal computer using a USB/RS485 interface converter and run the DIVISION CONTROLLERS program.
Main technical characteristics:
– type identifier: CDh;
– the number of controllers on one RS485 port is not more than 32;
– reader type MATRIX-II EH;
– WIGAND 26 protocol;
– Em-Marine card type;
– number of readers per controller – 2.
Manufacturor: “DVC Technologies”
Typical schemes for switching on the controller are given in the Operation Manual and in the Constructor section
