DVC POINT MONITOR
DVC POINT MONITOR is a device that works as part of the DVC CLOUD service and is designed to monitor engineering equipment and various sensors.

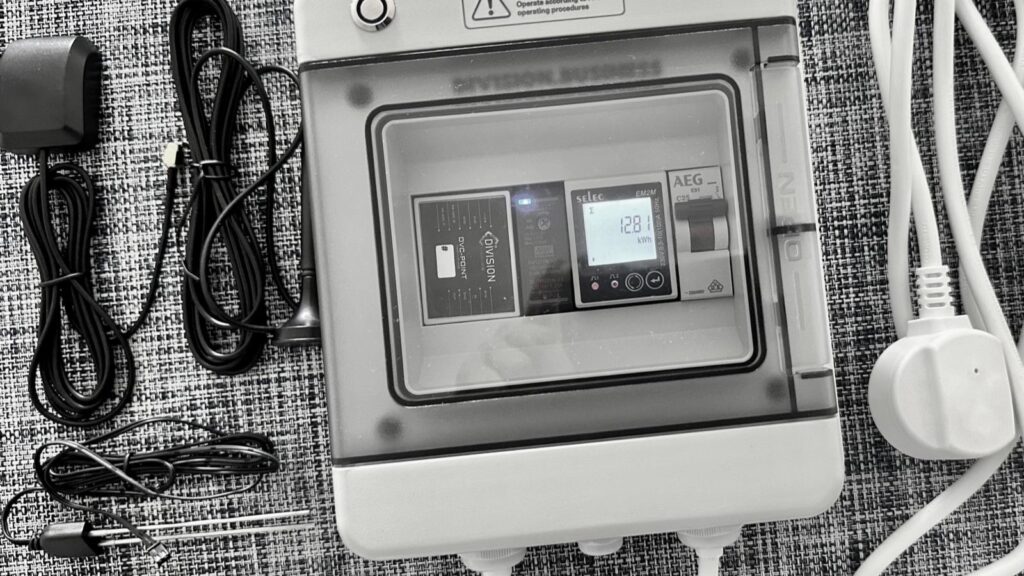

DVC POINT MONITOR includes a DVC Point modem installed inside a корпус, a single-phase or three-phase energy meter connected to it, and an analog input module 0–5 V for connecting sensors.
The configuration of DVC POINT MONITOR may vary depending on your monitoring task.
To start using the device:
Go to the DVC CLOUD service at https://dvc-cloud.com and register your account and a new site that will be monitored.
During registration, enter the Device ID (it is shown on the sticker inside the package) and select the type of energy meter from the drop-down list (it is specified in the device passport).WARNING: Open the device корпус only when the power supply is disconnected.
If the device is supplied without a SIM card, insert your own SIM card into the modem SIM holder.
To do this, open the device корпус, remove the GSM modem from the DIN rail, open the modem корпус, and insert the SIM card into the SIM holder located on the back side of the electronic board.

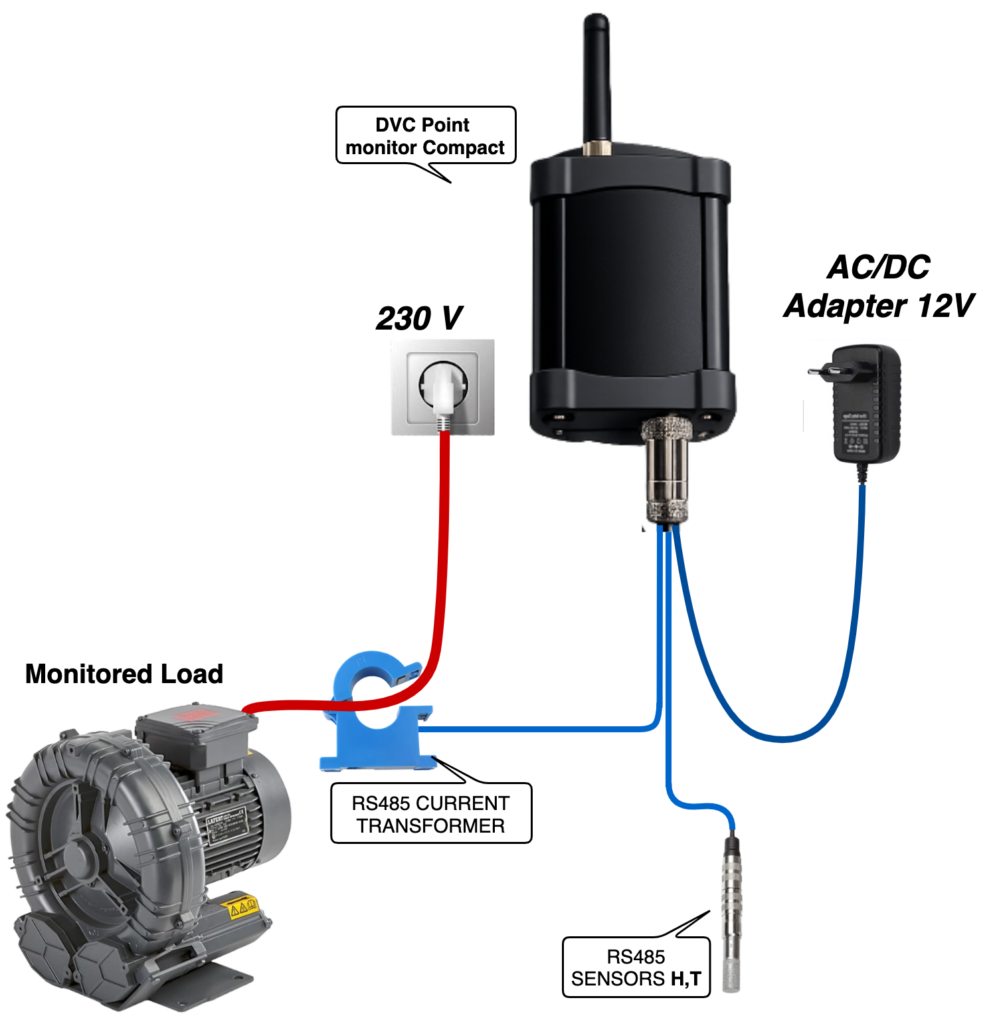

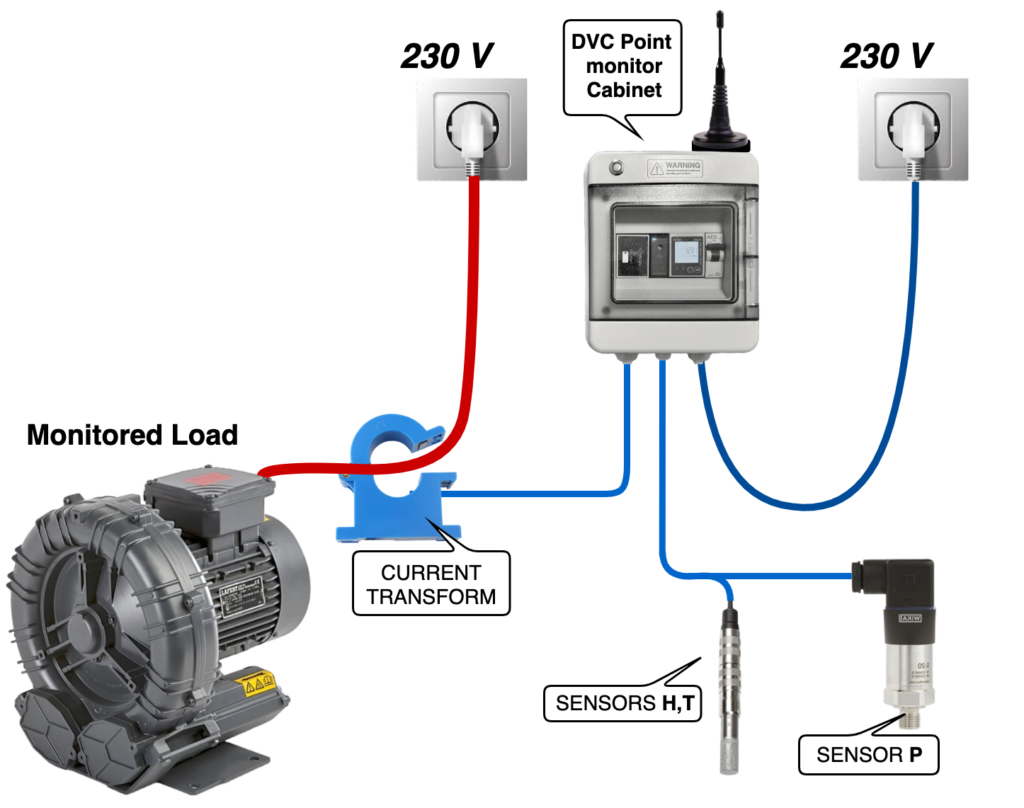

Connect DVC POINT MONITOR according to the wiring diagram (an example is shown in Fig. 1). Then turn on the power. The modem indicator should blink once every 2 seconds.
In your DVC CLOUD account, open the tab Account → My Objects and select the required object.
In the cube menu, choose Object info → Charts. There you can view daily charts of the monitored parameters.On the page Object info → Parameters and Limits, you can set limit values for each measured parameter. If a parameter goes outside the set limits, you will receive an email notification.
On the page Object info → Map, you can see your current object or all your objects on the map. They are shown according to the entered address or by GPS coordinates (for DVC POINT 2G GPS).
On the page Object info → Control panel, check the opto-relay switching or the open collector output activation (depending on the modem type).
The functional diagram of DVC POINT MONITOR is provided for reference.
