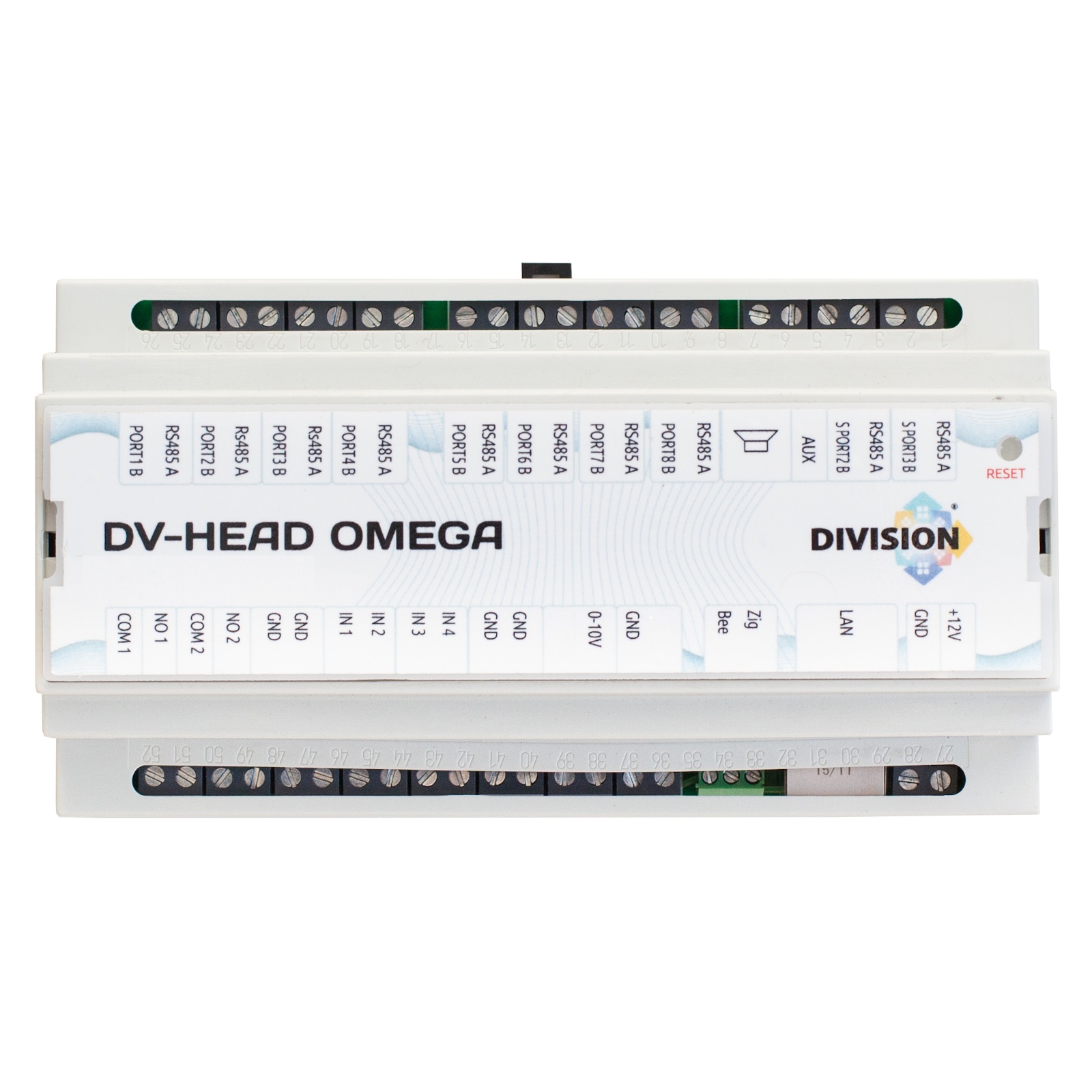

DV-HEAD OMEGA

Description

DV-HEAD OMEGA is a central controller for managing the DIVISION system as part of a fire and security alarm and Smart Home. The DV-HEAD OMEGA central controller is configured using the DIVISION CONSTRUCTOR program. DV-HEAD OMEGA can be used both independently (for small systems) and in combination with other DIVISION system controllers controlled via RS485 interface.

Main technical characteristics:
– Discrete inputs – 4;
– Output relays – 2;
– PWM outputs – 1;
– Output 0-10V – 1;
– ADC inputs – 1;
– RS485 port – 10;
– TCP/IP interface – 1;
– MP3 audio module – 1;
– Real time clock – 1;
– Thermal sensor for device temperature control – 1;
– Cooling fan – 1 (option);
– Supply voltage, V – 9-15;
– Current consumption, no more, mA – 400.

Producer: “DVC Technologies”

Typical schemes for switching on the controller are given in the Operation Manual and in the Constructor section
